Advantages for Customers ◆ Reduced Machining Time ◆ Save Manpower ◆ Less Processing Time ◆ Minimized Material Loss ◆ Closer Tolerances ◆ High Strength ◆ Consistent SurfaceSteel Grades| Type of Steel | GB | ASTM(SAE) | JIS |
| Carbon Steel | Q235, Q345, Q195,Q215 | A285MGr.B A570MGr.A | SS330 SS400 SS490 |
| Quality Carbon Steel | 10, 20, 35, 40, 60, 20Mn, 25Mn, 35Mn, 40Mn | 1010, 1020, 1035, 1045, 1060, 1022, 1026, 1037, 1039 | S10C, S20C, S35C, S45C… |
| Alloy Structural Steel | 20Mn2, 40Mn2, 20Cr, 40Cr, 20CrMo, 20CrMnTi, 20Cr2Ni4, 40CrNiMo | 1320, 1345, 5120, 5140, 4118, 4135, 4140, 3316, 4340 | SMn420, SMn438, SCr420, Scr440, SCM430, SCM435, SCM440, SCN 815, SNCM439 |
| Cold Heading Steel | ML10, ML20, ML30, ML35, ML35CrMo, ML42CrMo, ML15MnB | 1012, 1020, 1030, 1034, 4135, 4140, 1518 | SWRCH10R, SWRCH20K, SWARCH35K, SNB7 |
| Spring Steel | 65Mn, 60Si2Mn, 50CrVA | 1066, 6150 | SCP6, SCP10 |
| Bearing Steel | GCr15 | E52100 | SUJ2 |
| Tooling Steel | T8, T10, W6Mo5Cr4V2 | W1A-8， W1A-9.5， M2 | SK7, SK4, SKH9 |
| Cuttable Steel | Y12, Y12Pb, Y15, Y15Pb, Y40Mn | 1212, 11L08, 1215, 12L13, 12L14, 1141 | SUM21, SUM32, SUM22L, SUM42 |

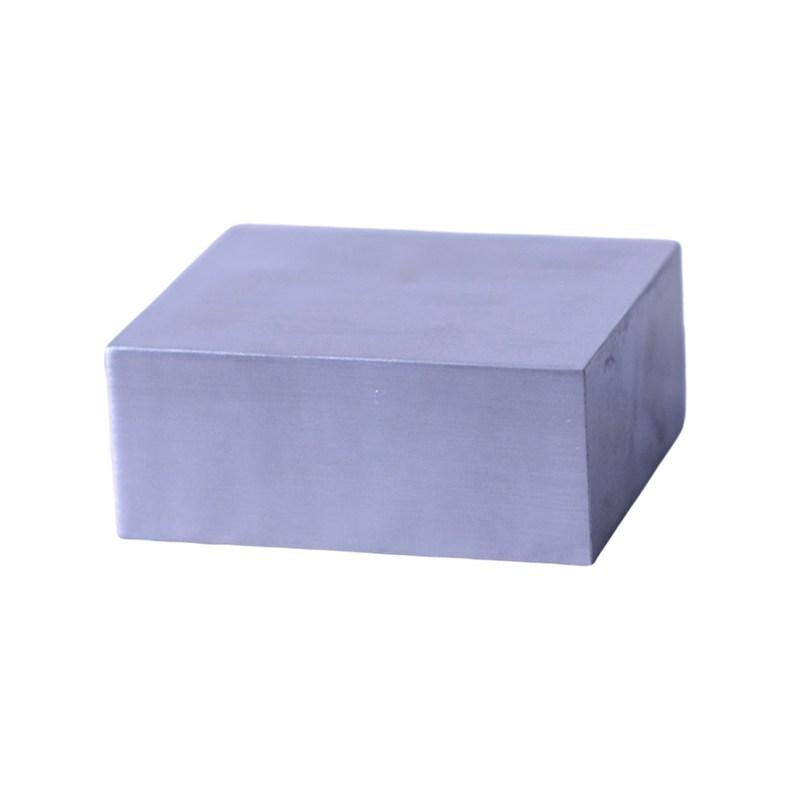

The dies are adjustable under 70 (T) x 70 (A). That means thickness and width of steel rectangle bar less than 70 mm can be manufactured immediately. We only list hexagon sizes we have already provided to customers. If you need profile A ≤ 70 and T ≤ 70, you can directly inform us. If you want a custom size above 70 x 70, we can help you as well. The biggest diameter we can provided is normally 100 x 100 for the moment.
| Rectangle Steel Size list with Sales History - Adjustable Dies | ||||
| 8 (T) x 30 (A) | 20 (T) x 60 (A) | 35 (T) x 45 (A) | 45 (T) x 70 (A) | 60 (T) x 65 (A) |
| 10 (T) x 10 (A) | 20 (T) x 65 (A) | 35 (T) x 50 (A) | 45 (T) x 75 (A) | 60 (T) x 67.35 (A) |
| 10 (T) x 15 (A) | 20 (T) x 70 (A) | 35 (T) x 55 (A) | 45 (T) x 80 (A) | 60 (T) x 70 (A) |
| 10 (T) x 20 (A) | 20 (T) x 75 (A) | 35 (T) x 60 (A) | 50 (T) x 52.5 (A) | 60 (T) x 75 (A) |
| 10 (T) x 22.5 (A) | 22 (T) x 25.3 (A) | 35 (T) x 65 (A) | 50 (T) x 53.22 (A) | 60 (T) x 80 (A) |
| 10 (T) x 30 (A) | 24 (T) x 24 (A) | 35 (T) x 70 (A) | 50 (T) x 55 (A) | 60 (T) x 90 (A) |
| 10 (T) x 32.65 (A) | 24 (T) x 25 (A) | 35 (T) x 75 (A) | 50 (T) x 57.65 (A) | 60 (T) x 93.25 (A) |
| 10 (T) x 40 (A) | 24 (T) x 27 (A) | 35 (T) x 80 (A) | 50 (T) x 60 (A) | 55.5 (T) x 70 (A) |
| 10 (T) x 45 (A) | 24 (T) x 28 (A) | 35 (T) x 85 (A) | 50 (T) x 62 (A) | 56 (T) x 70 (A) |
| 10 (T) x 50 (A) | 24 (T) x 30 (A) | 35 (T) x 95 (A) | 50 (T) x 64 (A) | 58 (T) x 70 (A) |
| 10 (T) x 55 (A) | 24 (T) x 32.5 (A) | 40 (T) x 40 (A) | 50 (T) x 68 (A) | 68.22 (T) x 70 (A) |
| 14 (T) x 22 (A) | 24 (T) x 37.25 (A) | 40 (T) x 42.3 (A) | 50 (T) x 70 (A) | 70 (T) x 70 (A) |
| 14 (T) x 22.5 (A) | 24 (T) x 40 (A) | 40 (T) x 43.5 (A) | 50 (T) x 72 (A) | 70 (T) x 72.5 (A) |
| 14 (T) x 35 (A) | 24 (T) x 60 (A) | 40 (T) x 45.5 (A) | 50 (T) x 78 (A) | 70 (T) x 77 (A) |
| 14 (T) x 55 (A) | 29 (T) x 35.5 (A) | 40 (T) x 50 (A) | 50 (T) x 80 (A) | 70 (T) x 78 (A) |
| 15 (T) x 15 (A) | 28 (T) x 30 (A) | 40 (T) x 55 (A) | 50 (T) x 92 (A) | 70 (T) x 80 (A) |
| 15 (T) x 20 (A) | 30 (T) x 35 (A) | 40 (T) x 60 (A) | 55 (T) x 55 (A) | 70 (T) x 82.5 (A) |
| 15 (T) x 25.3 (A) | 30 (T) x 40 (A) | 40 (T) x 65.5 (A) | 55 (T) x 57.25 (A) | 70 (T) x 85.25 (A) |
| 15 (T) x 30 (A) | 30 (T) x 45 (A) | 40 (T) x 70 (A) | 55 (T) x 60 (A) | 70 (T) x 88 (A) |
| 15 (T) x 35 (A) | 30 (T) x 50 (A) | 40 (T) x 75 (A) | 55 (T) x 63 (A) | 70 (T) x 90 (A) |
| 15 (T) x 40 (A) | 30 (T) x 55 (A) | 40 (T) x 80 (A) | 55 (T) x 68 (A) | 70 (T) x 93 (A) |
| 15 (T) x 45 (A) | 30 (T) x 60 (A) | 40 (T) x 85 (A) | 55 (T) x 70 (A) | 70 (T) x 97 (A) |
| 19 (T) x 27 (A) | 30 (T) x 65 (A) | 40 (T) x 90 (A) | 55 (T) x 78.5 (A) | 70 (T) x 100 (A) |
| 20 (T) x 20 (A) | 30 (T) x 70 (A) | 40 (T) x 95 (A) | 55 (T) x 80 (A) | 78 (T) x 80 (A) |
| 20 (T) x 22.5 (A) | 30 (T) x 75 (A) | 40 (T) x 100 (A) | 55 (T) x 83 (A) | 80 (T) x 85 (A) |
| 20 (T) x 25 (A) | 30 (T) x 80 (A) | 45 (T) x 45 (A) | 55 (T) x 85 (A) | 80 (T) x 86.22 (A) |
| 20 (T) x 30 (A) | 30 (T) x 85 (A) | 45 (T) x 46.35 (A) | 55 (T) x 90 (A) | 80 (T) x 95 (A) |
| 20 (T) x 35 (A) | 30 (T) x 90 (A) | 45 (T) x 48 (A) | 55 (T) x 100 (A) | 80 (T) x 100 (A) |
| 20 (T) x 40 (A) | 10 (T) x 35 (A) | 45 (T) x 50 (A) | 52.5 (T) x 60 (A) | 90 (T) x 92.65 (A) |
| 20 (T) x 45 (A) | 25 (T) x 35 (A) | 45 (T) x 55 (A) | 57 (T) x 60 (A) | 100 (T) x 100 (A) |
| 20 (T) x 50 (A) | 35 (T) x 35 (A) | 45 (T) x 60 (A) | 60 (T) x 60 (A) | 100 (T) x 120 (A) |
| 20 (T) x 55 (A) | 35 (T) x 40 (A) | 45 (T) x 65 (A) | 60 (T) x 62.5 (A) | |
